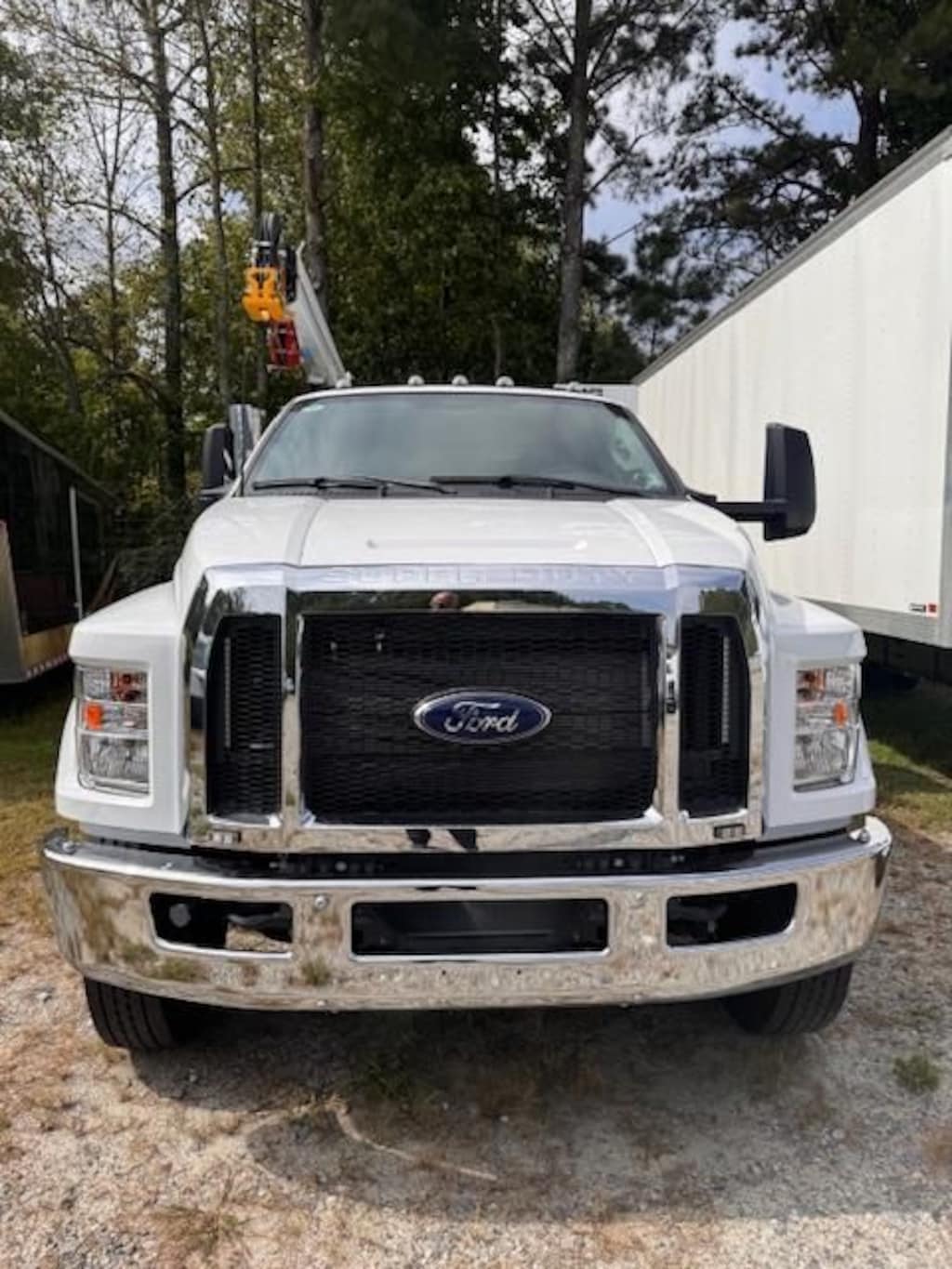

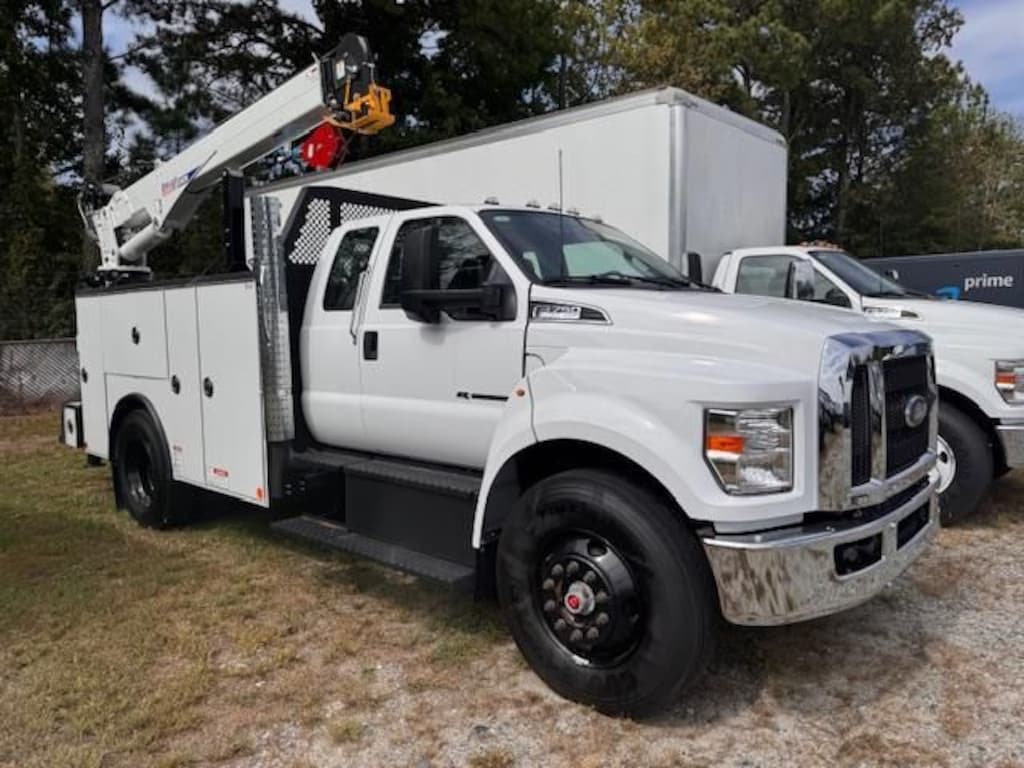

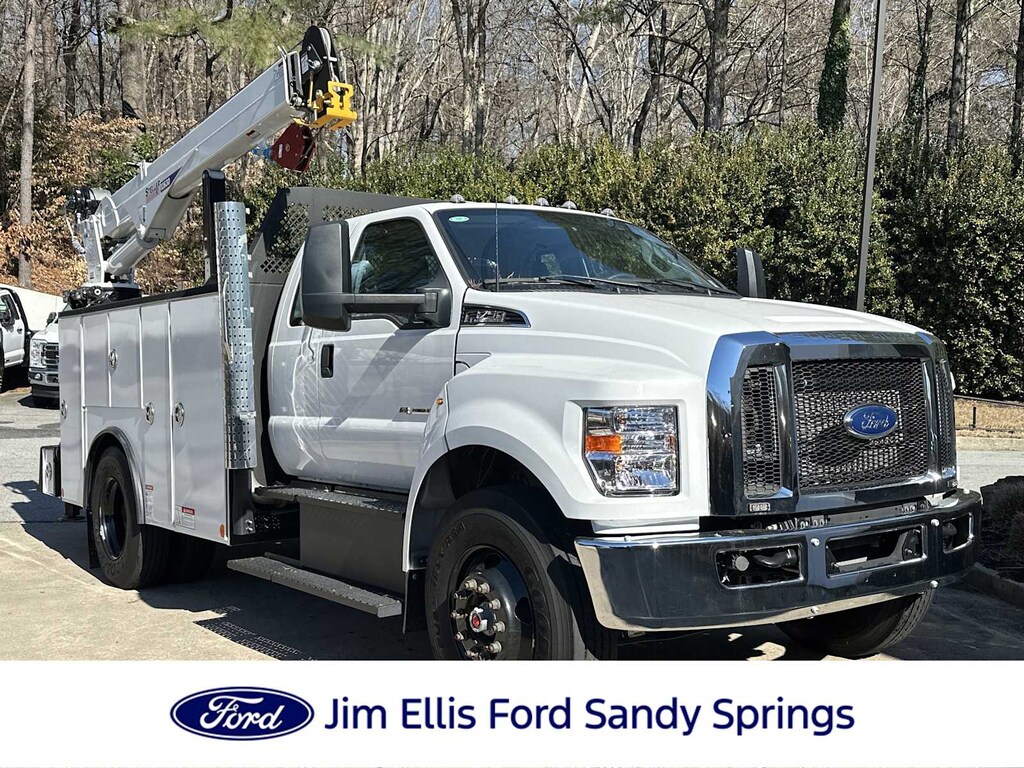

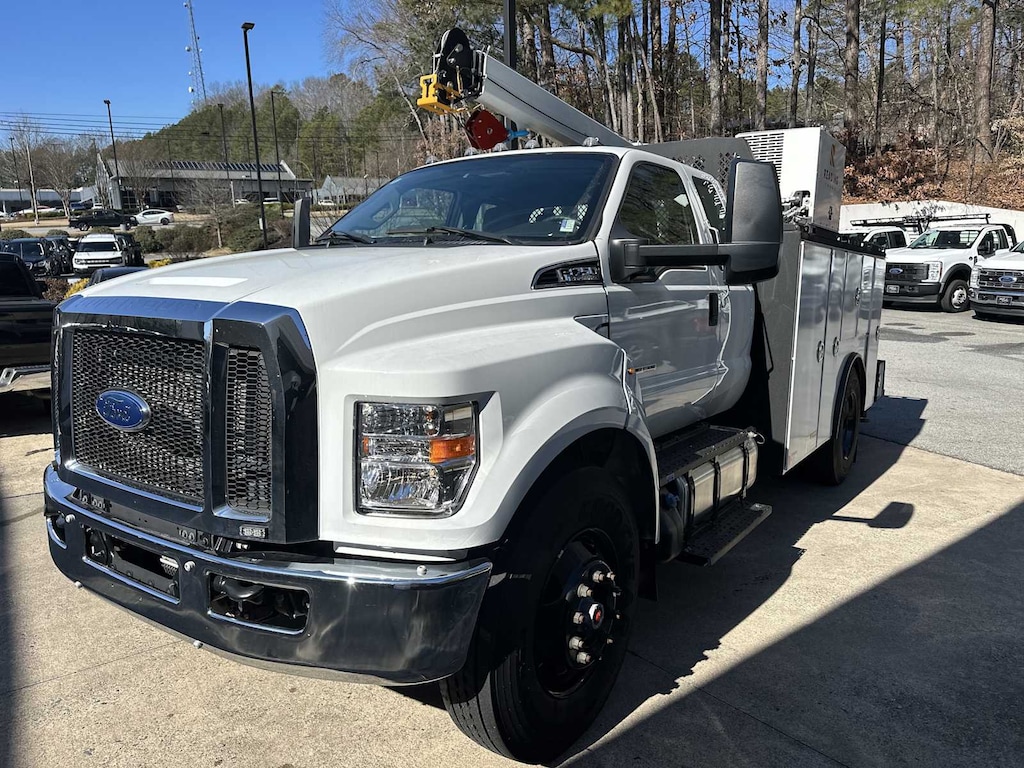

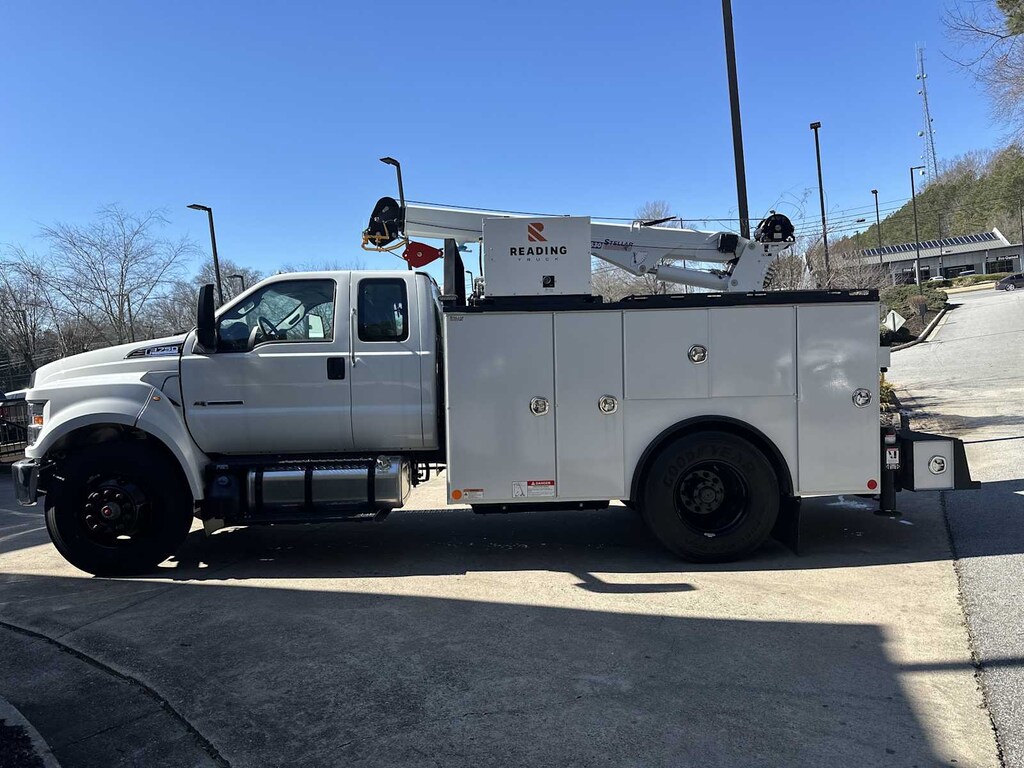

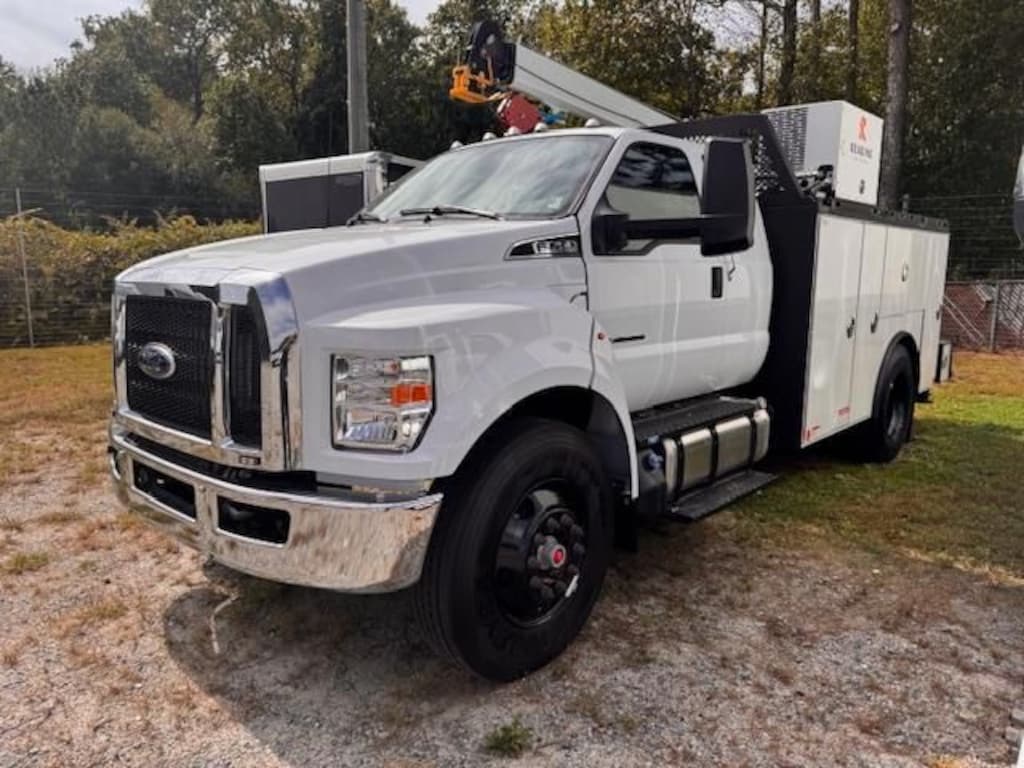

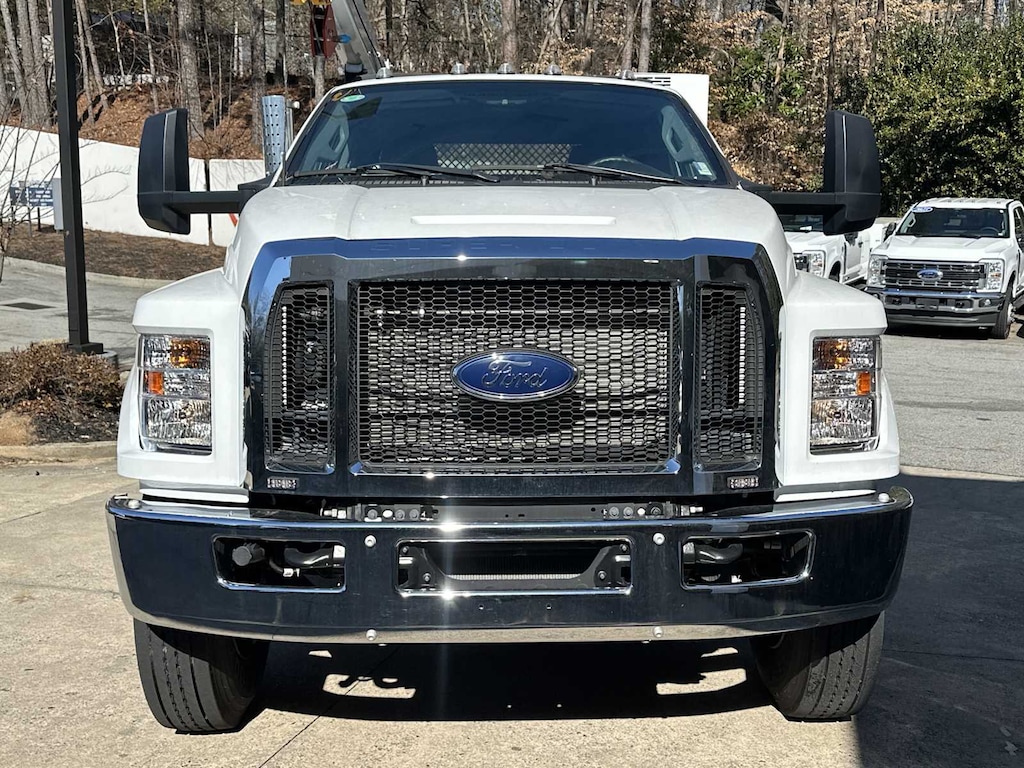

2025 Ford F-750 SuperCab 4x2 equipped with a Reading RM78 Series 11' Crane Body and Stellar 12630 hydraulic telescopic crane. Powered by the 6.7L Power Stroke diesel and rated at 25,990-lb GVWR, this is a serious commercial work truck built for contractors, utilities, equipment operators and fleet applications.

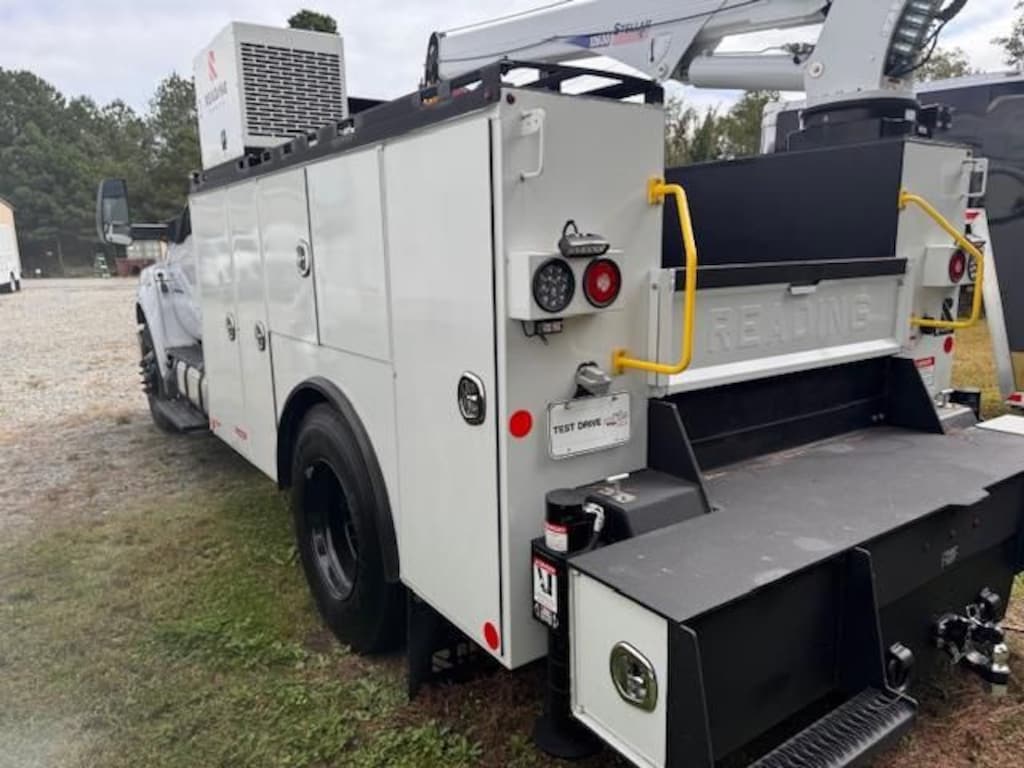

The Reading 11' crane body measures 132 long x 96 wide and features 22 deep side compartments, 60 high sides, 54.4 headache rack, master locking compartments, multiple shelves and drawer units, bolt bin, welder drawer, O/A tank brackets, reinforced crane compartment and hydraulic tank/secondary bulkhead.
The Stellar 12630 hydraulic telescopic crane is rated at 77,800 ft-lb, with up to 12,000-lb maximum lifting capacity at 6', 30' maximum horizontal reach and 31' maximum vertical lift. The crane is equipped with proportional radio remote control and adjustable boom support. Dual 12K power outriggers provide power-out and power-up/down operation on both sides, with front-mounted jack legs for additional stability.
Additional equipment includes a Reading crane control center, four exterior work lights, LED lighting, rear amber LED strobes, front grille-mounted LED strobes, 3/16 treadplate floor with six tie-downs, spray-lined black polyurethane body interior, Reading White finish and a workbench bumper with integrated steps and vise plate.
The truck also features a 30,000-lb GTWR trailer hitch with 30,000-lb pintle plate and 3,000-lb maximum vertical load, 7/4-way trailer receptacle, 2-5/16 ball/pintle combination hitch, and a Vanair Reliant RC40-L hydraulic air compressor producing 30 CFM at 100 PSI and 40 CFM at 175 PSI.
A fully equipped crane/service truck with the capacity, reach, storage and onboard equipment to go straight to work.
New 2025 FordF-750 Diesel Base
- Diesel
- Exterior Color
- Oxford White
- Interior Color
- Gray
- Body/Seating
- Truck SuperCab/5 seats
- Seats
- 5 seats
- Transmission
- FORD TORQSHIFT HD 10-SPEED AUTOMATIC - WITH PTO PR
- Drivetrain
- Rear-Wheel Drive
- Engine
- V-8 cyl
- VIN
- 1FDWX7DE8SDF06414
- Stock Number
- F13772
Ford
F-750 Diesel
Highlighted Features
- Wireless phone connectivity
- Speed sensitive wipers
- Split folding rear seat
- Steering wheel mounted audio controls
- Fully automatic headlights
- Dual rear wheels
- Heated door mirrors
Detailed Specifications
- 1-touch down
- 1-touch up
- Air conditioning
- Driver door bin
- Front beverage holders
- Overhead console
- Passenger door bin
- Passenger vanity mirror
- Power windows
- Speed control
- Telescoping steering wheel
- Tilt steering wheel
- Dual rear wheels
- Front tires: 279/82R22.5G
- Power steering
- Rear tires: 279/82R22.5G
- Rear wheel size: 22.5"
- Wheel size: 22.5"
- AM/FM radio
- Speakers: 4
- Steering wheel mounted audio controls
- Wireless phone connectivity: Bluetooth
- Basic warranty: 24 months/ unlimited distance
- Corrosion perforation warranty: 36 months/ unlimited distance
- Diesel engine warranty: 60 months/250,000miles
- Powertrain warranty: 24 months/ unlimited distance
- Roadside assistance coverage: 24 months/ unlimited distance
- Driver seat mounted armrest
- Max seating capacity: 5
- Passenger seat mounted armrest
- Rear seats: split-bench
- Rear seats Folding position: fold-up cushion
- Seat Upholstery: vinyl
- Split folding rear seat
- Block heater
- Compressor: intercooled turbo
- Cylinder configuration: V-8
- Drive type: rear-wheel
- Engine liters: 6.7L
- Engine location: front
- Horsepower: 300hp @ 2,500RPM
- Hybrid traction battery type: none
- Manual-shift auto
- Mode select transmission
- Number of valves: 32
- Recommended fuel: Diesel
- Torque: 725 lb.-ft. @ 1,500RPM
- Transmission: 10 speed automatic
- Bumpers: chrome
- Heated door mirrors
- Power door mirrors
- Compression ratio: 16.20 to 1
- Curb weight: 4,950kg (10,912lbs)
- Engine bore x stroke: 99.1mm x 108.0mm (3.90" x 4.25")
- Engine displacement: 6.7 L
- Engine torque: 725 lb.-ft. @ 1,500RPM
- Exterior body width: 2,456mm (96.7")
- Exterior height: 2,416mm (95.1")
- Exterior length: 6,782mm (267.0")
- Front headroom: 1,034mm (40.7")
- Front hiproom: 1,717mm (67.6")
- Front legroom: 1,052mm (41.4")
- Front shoulder room: 1,727mm (68.0")
- Rear headroom: 968mm (38.1")
- Rear hiproom: 1,709mm (67.3")
- Rear legroom: 803mm (31.6")
- Rear shoulder room: 1,730mm (68.1")
- Wheelbase: 4,547mm (179.0")
- Appearance: analog
- Delay-off headlights
- Front reading lights
- Fully automatic headlights
- Speed sensitive wipers
- Tachometer
- Trip computer
- Variably intermittent wipers
- Voltmeter
- ABS brakes
- Electronic stability
- Tracker system
- Traction control
